What are the different flat roofing material types?

March 21, 2024
Posted in Flat Roofs
March 21, 2024 Summit Construction Group

What are the different flat roofing material types?

Modern flat roofs have become very popular in recent years due to their sleek design. Several kinds of flat roof types exist, from thermoplastic membranes, rubber membranes, built up roofing, liquid-applied roofing, and green roofing. Selecting the right roofing materials for your home is what greatly determines the performance, durability, and longevity of flat roofs.

In this guide, we’ll discuss the life span of flat roofs, examine their performance measurements, discuss their ease of installation, expand on the necessary maintenance requirements, the costs involved with installing a flat roof, and the environmental implications for each type of flat roof material. We’ll also dive into the  different roofing materials, their advantages, disadvantages, and lifespan, so architects, contractors, and building owners have the knowledge needed to make informed decisions that align with their project goals, sustainability objectives, and budgetary constraints.

Importance of Choosing the Right Material

Choosing the right roofing material is essentially what your entire building project is going to depend on. As a result, knowing the structure of all flat roof components, including insulation, drainage systems, flashing, and membrane layers will keep your flat roof structure intact in order to ensure its integrity and performance.

The initial factor you need to consider is the type of roofing material chosen as that determines the structural integrity and lifespan of the roof. If the roofing material is made from a high-quality durable material, it is likely to resist rain, wind, snow and UV radiation.

Additionally, the material must be flexible enough to endure thermal expansion and contraction on a daily basis without structural problems. For example, thermal expansion caused by the sun reflecting on the roof’s surface in environments with extreme summer heat and humidity can cause shingles to buckle and break, necessitating a complete roof replacement.

The second factor to consider is the energy efficiency that a good quality roofing system can bring to a home. Given that flat roofs are exposed to direct sunlight, this makes them critical to a home’s temperature control, heavily influencing the ability of the structure to successfully maintain internal temperatures. A good energy-efficient roofing material will contribute to the insulation of the home, avoiding any further heating and cooling systems to be implemented. It will also contribute to reduced energy consumption, thereby leading to a reduction in utility costs over time. Lastly, an energy efficient roof will contribute to mitigating the building’s environmental impact by lowering the emission of carbon into the atmosphere, as a side-effect of energy use.

Each type of roofing material is going to impose different requirements in terms of maintenance, ranging from periodic inspections to one-off or frequent specialized treatments, like waterproofing or moss scraping. Modified bitumen roofing, for example, has been gaining in popularity recently due to its resistance to winter extremes and its easy application.

Different Types of Flat Roof Materials

Before discussing the pros and cons of each flat roof materials type, it’s important to examine their compatibility with different project needs. Selecting a suitable material for flat roofing is a fundamental choice that can significantly influence the performance, longevity and overall structural integrity of a building.

In most countries around the world, flat roofs are permitted under building regulations and codes, depending on the climate and weather of the local area and the context of the project. As a result, there are a variety of flat roofing materials to choose from, each with its own set of characteristics based on their composition and the technology involved.

Widely used flat roofing materials include thermoplastic membranes such as thermoplastic olefin (TPO) and polyvinyl chloride (PVC), rubber membranes such as ethylene propylene diene monomer (EPDM), , metal roofing, and green roofing systems. Each material is different in character and can be more suited to certain project needs and climates than others. Let’s consider the different roofing materials in detail.

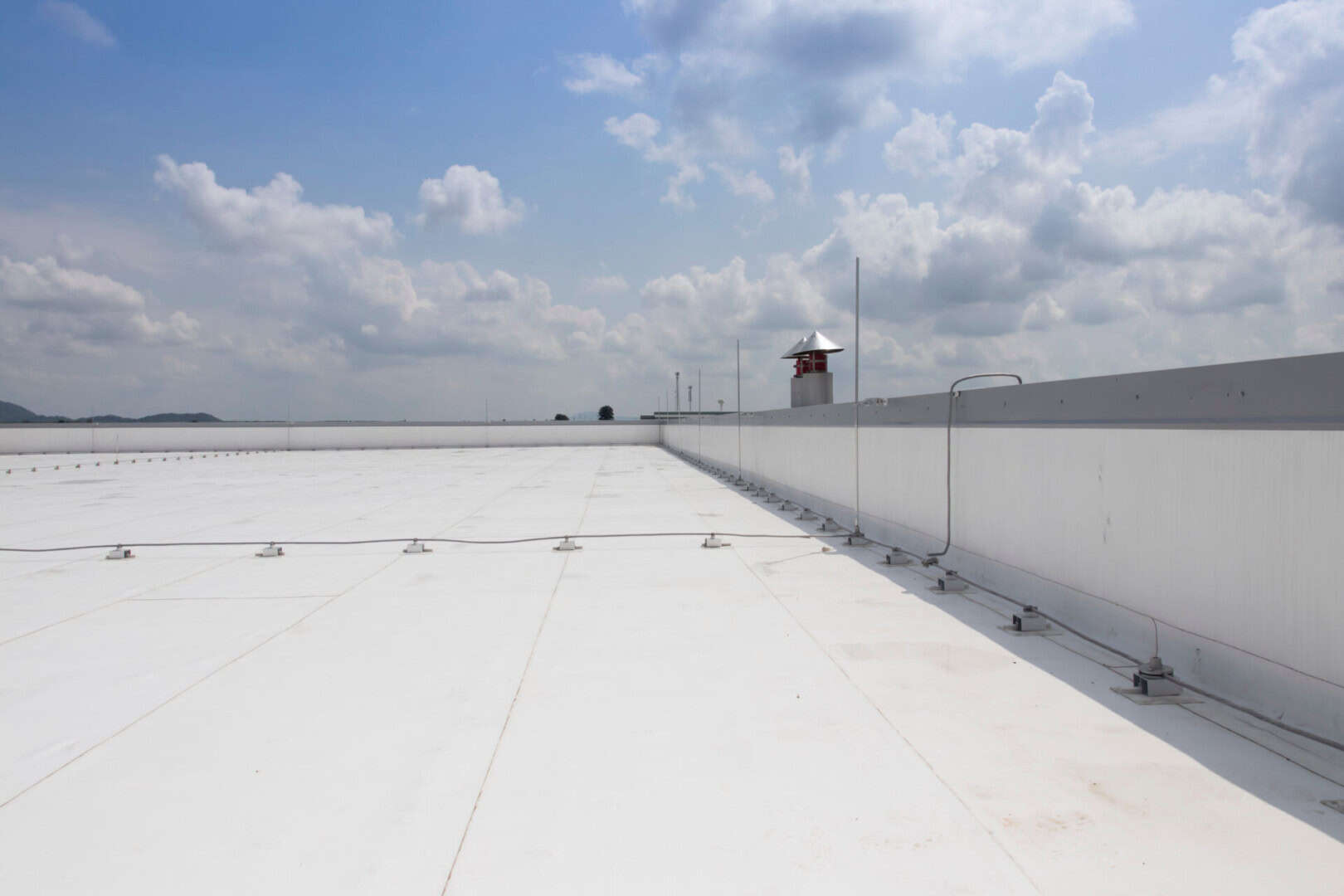

TPO Roofing

TPO roofing, or Thermoplastic Polyolefin roofing, is a single-ply roofing membrane made from a mixture of polypropylene and ethylene-propylene rubber. Considered durable and flexible, TPO roofing material provides excellent reflectivity and energy efficiency, reflecting sunlight and reducing cooling costs by limiting the amount of heat absorbed by a building’s roof. TPO roofing membranes can be installed as a fully adhered, mechanically attached, or ballasted system. TPO roofing is UV radiation, puncture and tear resistant and is not chemically reactive. As an easy-to-install, cost-effective roof covering solution, proper installation and maintenance are required for achieving the maximum performance and lifespan of TPO roofing.

  • Advantages: TPO roofing offers excellent durability, UV resistance, and flexibility. It’s lightweight and can withstand temperature extremes.
  • Disadvantages: Vulnerable to punctures during installation if not handled properly. May shrink over time.
  • Lifespan and Performance: Typically lasts 15-20 years with proper maintenance. Performs well in various climates.
  • Costs: Moderate upfront costs, but potential energy savings over time.

PVC Roofing

PVC roofing, or Polyvinyl Chloride, is a fire-retardant membrane designed for application on flat roofs. It is made from synthetic polymer, vinyl chloride and is heat-welded during the installation of the roof. This heat-welding process allows the sheets to be overlapped thus creating a seamless, watertight barrier between the roof and leaks. In addition to fire-resistance, PVC roofing is very durable, resistant to UV radiation, ozone and chemicals. It’s also resistant to harsh weather conditions and can therefore be applied in buildings that are situated in industrial environments. PVC roofing is also energy-efficient with reflective properties that help manage energy by reducing the amount of absorbed heat and reducing the costs for cooling. PVC roofing material for flat-roofs is a long-lasting and energy-efficient choice for many residential buildings. It offers excellent performance if correctly installed and properly maintained.

  • Advantages: PVC roofs are highly durable, resistant to chemicals and fire, and have excellent membrane strength.
  • Disadvantages: Vulnerable to punctures during installation and may become brittle over time.
  • Lifespan and Performance: Can last 20-30 years with proper maintenance, plus they are suitable for various climates.
  • Costs: Moderately expensive upfront but offers long-term durability.

flat pvc roof

EPDM Roofing

EPDM roofing, or Ethylene Propylene Diene Terpolymer, is a synthetic, single-ply rubber roofing membrane used in low-slope and flat roofings for both commercial and residential applications. Being manufactured from a polymerized compound of ethylene, propylene, and a specific quantity diene monomer, it provides impressive durability and weathering resistance. EPDM is resistant to UV radiation, ozone, and weathering, making it perfect for fitting in most climates and varied topography. Installed using fully adhered, mechanically attached or ballasted systems, it is extremely easy to install and requires minimal maintenance.

  • Advantages: EPDM is highly resistant to UV radiation, ozone, and weathering. It’s easy to install and repair.
  • Disadvantages: Susceptible to punctures from sharp objects. May require frequent maintenance to prevent leaks.
  • Lifespan and Performance: Can last 20-30 years with proper care. Suitable for moderate climates.
  • Costs: Relatively affordable compared to other materials.

Built-Up Roofing (BUR)

BUR systems are durable, multi-layered roofing constructions used for low-slope or flat roofs. They consist of alternating layers of reinforcing materials like asphalt-impregnated felt or fiberglass, bitumen layers, and protective surfacing such as gravel or mineral granules.

  • Advantages: Durable with a lifespan of 20-30+ years. They have excellent water and fire resistance, UV protection, and customizable design options.
  • Disadvantages: Can involve complex installation requiring skilled labor. Often have a higher initial cost and maintenance requirements. Their heavy weight may require additional structural support, and there are potential environmental concerns with traditional asphalt or coal tar materials.
  • Lifespan and Performance: With proper maintenance, BUR systems last 20-30+ years. They offer durability, water and fire resistance, and withstand extreme weather conditions.
  • Costs: Installation costs are influenced by factors like roof size, materials, and labor

Metal Roofing

Metal roofing is made from metal panels or shingles. It is popular for most buildings, residential and commercial. Metal roofing helps extend the life of the roof and lasts longer than other roofing materials, typically up to 40 or 50 years with proper installation and maintenance. Metal roofs are resistant to rain, snow, hail, wind, fire, pests and insects, and they reflect the sun, cooling down your house in the summer and helping to save on the cost of cooling or air conditioning. Metal roofing is made from recycled materials, which gives benefits to the environment, and even though they are more expensive than other roofing materials, it does produce cost savings in the long run.

  • Advantages: Metal roofs are extremely durable, fire-resistant, and recyclable. They offer excellent longevity and require minimal maintenance.
  • Disadvantages: Initial cost can be high. Prone to expansion and contraction with temperature fluctuations.
  • Lifespan and Performance: Can last 40-50 years or more with proper installation and maintenance. Suitable for all climates.
  • Costs: Higher initial investment but offers long-term savings and durability.

Green Roofing

Green roofing, commonly known as eco-top roofing, is a roofing system composed of vegetation, plants, soil and additional sublayers for growing vegetation. This form of roofing system offers many environmental and functional benefits. Absorbing rainwater, reducing the heat island effect in cities, improving the air quality, and increasing biodiversity, becoming more important for sustainably roofing for our 21st century buildings. At the same time, the vegetation provides natural insulation to reduce energy usage and can double the life expectancy of the roof. Also, it enhances the aesthetics of any building project.

  • Disadvantages: Requires additional structural support and specialized installation. Higher maintenance requirements.
  • Advantages: Green roof offering insulation absorbs rainwater and reduces the heat island effect. In addition, it also improves the city’s air quality and biodiversity.
  • Lifespan and Performance: Lifespan varies depending on maintenance and climate. Offers environmental benefits.
  • Costs: Higher initial investment but potential long-term savings and environmental benefits.

No single solution is better than another when it comes to what material to use for a flat roof. The roofing material chosen depends on the climate, budget, longevity and durability needs, and sometimes, environmental requirements. Knowing the characteristics of flat roof materials can help building owners, architects, and contractors design roofs that withstand the test of time.

Environmental Considerations

Apart from performance and cost factors, those looking for environmentally sustainable choices should consider eco-friendly options and materials with high recyclability. Green roofing systems have a unique sustainability feature; the roof becomes living and breathing as the plants mature into vegetation, housing plant life, and soil. Green roofs prevent heat from being conducted, they capture rainwater, prevent overheating and act as a natural air filter, thereby improving the urban air.

Moreover, the energy that is used in the life cycle of a material, such as mining, extraction, production, transportation, installation, maintenance, and finally dismantling, known as embodied energy, is considered critical for those who consider green roofs. Typically, the materials with less embodied energy are more sustainable as their footprint is smaller.

Finally, it should be worthwhile thinking about the future of a project and whether the material could be recycled or repurposed at the end of its lifespan. Some materials are more reusable than others, so if there could be a material that would have a second afterlife, this will help the environment by creating less waste. The key is to think progressively and be sensitive, especially when it comes to green building.

Flat Roof Parts and Components

Whichever roofing option is chosen, it’s important to understand the detailed components of a flat roof system during installation, maintenance, and repair. For example, ballasted roofing involves loose-laid membranes that are secured in place with ballast materials such as gravel or pavers.

Other items to consider are cost-efficiency, ease of maintenance, insulation and the levels of heat and sound that a building is able to withstand. The majority of flat roofs have a flat or closely pitched drainage system that requires gutters to be installed around the entire perimeter of a building. In addition, flashing membranes are necessary in all buildings, fastening the walls to the perimeters of the roof’s surface.

Working with expert roofing and construction professionals who understand the nuances of flat roofing systems can help ensure that these important details aren’t forgotten.

Types of Commercial Flat Roofing Materials

The cost of a flat roof material relates to many factors such as roof’s size and square footage, whether or not there is HVAC equipment on the roof and if there are rooftop structures. Commercial flat roofs may also be obliged to meet certain building code prescriptions depending on the material amongst other parameters like fire rating, wind uplift resistance, and environmental certifications. An experienced commercial roofing company or a modular roof manufacturer can offer guidance in choosing flat roof materials for specific applications.

Conclusion

There exist many different types of flat roof styles, some traditional, some modern, from different architectural styles that will suit various building structures and design preferences. Deciding on the right flat roofing material should be properly assessed using a combination of its performance, durability, and costs, since all decisions made on the flat roofing material selected could affect the overall longevity, performance, and design of a flat roof.
